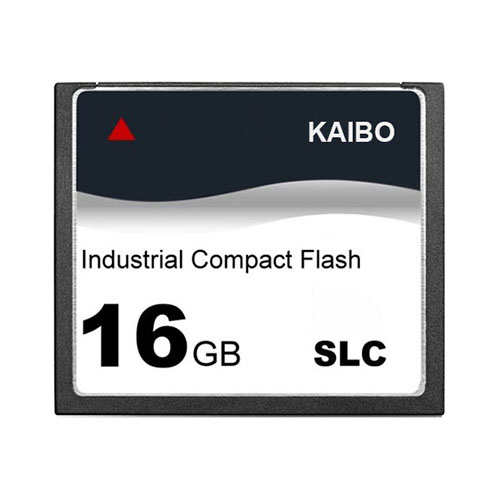

KAIBO Industrial CF card Compact Flash card

We are factory,Hope OEM and ODM order.

Capacity: 128M 256M 512M 1GB 2GB 4GB 8GB 16GB 32GB 64GB.
Nand Flash: MLC and SLC.

Please send email to get more details: info@kaibotek.com

Specification
Controller	Silicon Motion 2232AD 2 Channel
Form Factor	Compact Flash Card Type1
Interface	Standard CF-50pin,PC card memory mode, PC card I/O mode, True IDE mode
Flash Type	SLC, MLC
Capacity	512MB, 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB
Performance	Sequential read	up to 65MB/s
	Sequential write	up to 55MB/s
Power	Input voltage	3.3V/5V (+/_5%)
	Working(Max)	1.0W
	Idle power	0.1W
Reliability and stability	Endurance	Block: SLC 100k, MLC 5k program/erase cycles
	MTBF	≥ 2,000,000 hours
	ECC	24 error correcting code every 1,024 Byte
Environmental	Operating temperature	-40℃ to +85℃
	Storage temperature	-55℃ to +95℃
	Humidity	5% to 95%
	Vibration	4G,  10~ 500Hz (operating)
	Shock	Half-sine wave, 100G/6ms
Dimension(LxWxH)	42.8 x 36.4 x 3.3mm
Others	Weight: ≤12g

The specific models are as follows:

Industrial Grade CF card 128MB : KB-CF-128MBM (MLC) and KB-CF-128MBS (SLC)

Industrial Grade CF card 256MB : KB-CF-256MBM (MLC) and KB-CF-256MBS (SLC)

Industrial Grade CF card 512MB : KB-CF-512MBM (MLC) and KB-CF-512MBS (SLC)

Industrial Grade CF card 1GB : KB-CF-1GBM (MLC) and KB-CF-1GBS (SLC)

Industrial Grade CF card 2GB : KB-CF-2GBM (MLC) and KB-CF-2GBS (SLC)

Industrial Grade CF card 4GB : KB-CF-4GBM (MLC) and KB-CF-4GBS (SLC)

Industrial Grade CF card 8GB : KB-CF-8GBM (MLC) and KB-CF-8GBS (SLC)

Industrial Grade CF card 16GB : KB-CF-16GBM (MLC) and KB-CF-16GBS (SLC)

Industrial Grade CF card 32GB : KB-CF-32GBM (MLC) and KB-CF-32GBS (SLC)

Industrial Grade CF card 64GB : KB-CF-64GBM (MLC) and KB-CF-64GBS (SLC)
