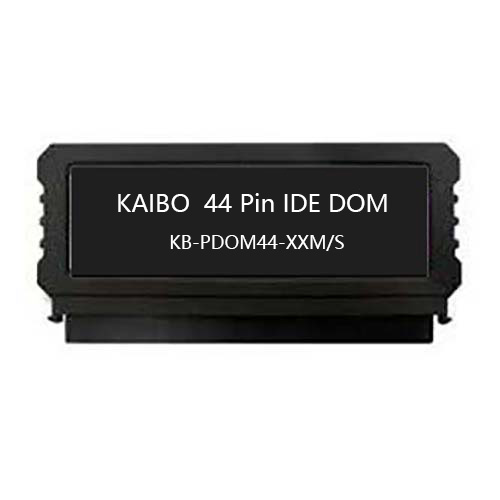

44 Pin IDE DOM
  1. 44 Pin IDE DOM ( PATA DOM ) Capacity: 64MB 128MB 512MB 1GB 2GB 4GB 8GB 16GB 32GB 64GB.
  2. Optional: anti-static shell.
  3. MLC and SLC.
  4. Vertical and Horizontal design.
  5. 90 degree, 180 degree and 270 degree.
  6. Female and male interface.
  7. Standard 44-pin IDE female connector.
  8. Advanced Wear-Leveling and Block Management.
  9. Built-in ATA Secure Erase and S.M.A.R.T. Function.
  10. Intelligent Power Failure Recovery.
  11. Compatible with 5V or 3.3V power supply.
  12. Supports write protection.
  13. -Support PIO Mode 0 – 6.
  14. Support Multiword DMA Mode 0 – 4.
  15. Supports Ultra DMA Mode 0 – 7.
  16. Excellent data transfer speed.
  17. -Write protection security.
  18. Enhanced power cycling management.
  19. Intelligent error recovery system.


KAIBO 44 pin IDE DOMs were produced using top chips that have passed the wide temperature test and endurance test to provide longevity, high efficiency, stable and smooth work.

Detail

KAIBO 44 Pin IDE DOM ( PATA DOM , EDC , FDM , Flash memory , Disk on Module ) support working temperature : -40℃ ~ +85℃


We are factory,Hope OEM and ODM order.

It with horizontal and vertical.

Capacity: 64MB 128MB 512MB 1GB 2GB 4GB 8GB 16GB 32GB 64GB.

Nand Flash: MLC and SLC.



Hotsell: 1GB 44 PIN IDE DOM , Female interface, SLC , Industrial Level.

            4GB 44 PIN IDE DOM , Female interface, SLC , Industrial Level.

            8GB 44 PIN IDE DOM , Female interface, SLC , Industrial Level.

            16GB 44 PIN IDE DOM , Female interface, MLC , Industrial Level.

            32GB 44 PIN IDE DOM , Female interface, MLC, Industrial Level.

            64GB 44 PIN IDE DOM , Female interface, MLC, Industrial Level.


We are factory,Hope OEM and ODM order.

Please send email to get more details: info@kaibotek.com


Specification:
Model KB-PDOM44-XXM/S
Interface Standard ATA / IDE
Connector 44-pin (2.54mm pitch)
Transfer Mode PIO Mode-0-6;
MWDMA Mode-0-4;
Ultra DMA Mode-0-7
Flash Type MLC SLC
Sequential R/W
(MB/sec,max.)
130/65 130/100
Capacity 64MB - 64GB 64MB - 32GB
Max.Channels 2 2
External Power supply
Internal Power supply - -
Vertical
Horizontal - -
Anti-Static shell
External DRAM buffer - -
H/W Write Protect
ATA Security
TRIM support
S.M.A.R.T.
Environment Vibration: 20G @7~2000Hz,
Shock 1500G @ 0.5ms,
Temperature: -55°C~+95°C
MTBF (hours) >2 million hours >3 million hours
Operating temperature: -20℃ to +75℃
-40℃ to +85℃
Storage Temperature -55℃ ~ + 95℃
Dlmension (W*L*H) 45mm*34mm*8mm

The specific models are as follows:

Industrial Grade 44 PIN IDE DOM 64MB : KB-PDOM44-64MBM (MLC) and KB-PDOM44-64MBS (SLC)

Industrial Grade 44 PIN IDE DOM 128MB : KB-PDOM44-128MBM (MLC) and KB-PDOM44-128MBS (SLC)

Industrial Grade 44 PIN IDE DOM 256MB : KB-PDOM44-256MBM (MLC) and KB-PDOM44-256MBS (SLC)

Industrial Grade 44 PIN IDE DOM 512MB : KB-PDOM44-512MBM (MLC) and KB-PDOM44-512MBS (SLC)

Industrial Grade 44 PIN IDE DOM 1GB : KB-PDOM44-1M (MLC) and KB-PDOM44-1S (SLC)

Industrial Grade 44 PIN IDE DOM 2GB : KB-PDOM44-2M (MLC) and KB-PDOM44-2S (SLC)

Industrial Grade 44 PIN IDE DOM 4GB : KB-PDOM44-4M (MLC) and KB-PDOM44-4S (SLC)

Industrial Grade 44 PIN IDE DOM 8GB : KB-PDOM44-8M (MLC) and KB-PDOM44-8S (SLC)

Industrial Grade 44 PIN IDE DOM 16GB : KB-PDOM44-16M (MLC) and KB-PDOM44-16S (SLC)

Industrial Grade 44 PIN IDE DOM 32GB : KB-PDOM44-32M (MLC) and KB-PDOM44-32S (SLC)

Industrial Grade 44 PIN IDE DOM 64GB : KB-PDOM44-64M (MLC) and KB-PDOM44-64S (SLC)
